Zoom - 'LiveTrak L-20R' Rackmountable Digital Mixer & Recorder
Zoom - 'LiveTrak L-20R' Rackmountable Digital Mixer & Recorder, USB connectivity, 16 mono/2 stereo inputs
Email me when the availability or price changes
Finance this product
- From £23.64 / month (APR 16.9%) or 0% for 4 months
- With a 10% deposit from just £17.94 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.

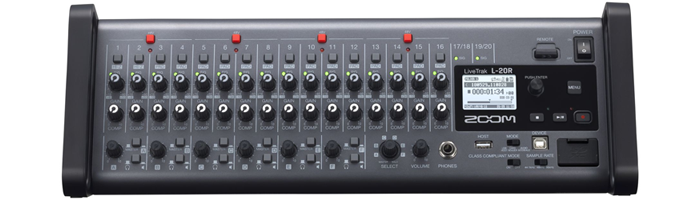

Rack-Mountable Digital Mixer
Zoom - 'LiveTrak L-20R'
The Portable Mixer/Recorder That Does It AllThe Zoom LiveTrak™ L-20R is a rack-mountable digital mixer which lets musicians control their live mix right on the stage with the use of an iPad. Including wireless control, 20 discrete channels, 22 tracks of recording and six custom monitor mixes, the L-20R delivers a full solution for any venue.
22 ChannelsRecording
16 Mono/2 StereoInputs
44.1/48/96 kHzSample Rate
Amazing Features
• “Master” and “Headphone” options allow you to design custom mixes for both the master and monitor outs
• An encoder knob and bright, backlit LCD screen let you access an intuitive menu
• The L-20R features USB connectivity for transferring files or use as an audio interface
• Record up to 512GB of audio to an SD card

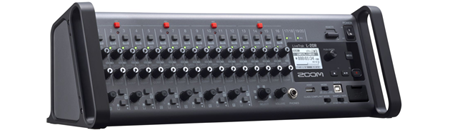

Portable & Powerful
Versatile RecordingThe L-20R can take on some of the most demanding stages with its 16 mono mic/line inputs and two stereo inputs. It also includes two EFX busses and each channel includes a 3-band EQ, pan controls and compressor.
22 Tracks of Recording
High-Quality AudioWhilst playing live you can record 20 channels and a stereo mix directly to an SD card, then transfer your tracks to your DAW to edit and mix it into the final recording.

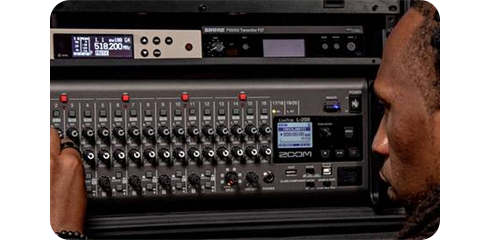

Make It Your Mix
Easily SwitchableThe L-20R has six independent monitor outputs which enables musicians to create their own custom mix.
A dedicated output allows the front of house engineer to switch between monitoring the main and sub mixes easily.

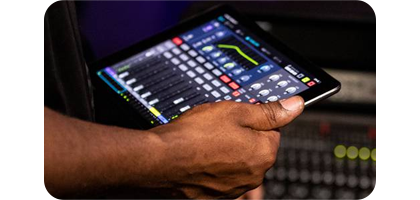

iPad Control & Screen Recall
Wireless ControlWhen using an iPad this allows the front of house engineer and 6 musicians to control their own mix from anywhere in the venue.
The LiveTrak L-20R’s Screen Recall feature means you can instantly recall up to nine different scenes with monitor mixes, EQ settings, effects, and more.
A Robust Audio Interface

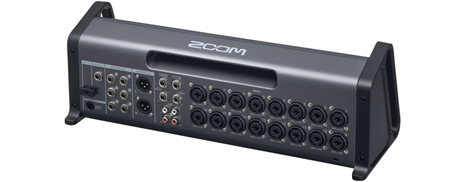

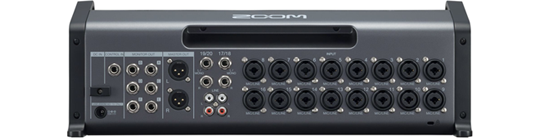

Versatile DesignThe L-20R is a 22-in/4-out USB audio interface. Route inputs to any DAW, streaming software, or iOS device even when recording directly to an SD card. The L-20R’s versatile design gives you easy access for plugging in your cables.
The Zoom LiveTrak L-20R
The Tech Spec
| Features | Specification | Input & Output Channels | Inputs: Mono (MIC/LINE): 16 | Stereo (LINE): 2 Outputs: Master out: 1, Monitor Out: 6, Phones: 1 |
|---|---|
| Inputs 1-16 | Mono (Mic/Line): Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT), Input gain | PAD OFF: +16 – +60dB | PAD ON: − 10 – +34 dB | Hi-Z ON: +6 – +50 dB, Input impedance | XLR: 3 k Ω | TRS: 10 k Ω /1 M Ω (when Hi-Z ON), Maximum input level | PAD OFF: 0 dBu (at 0 dBFS) | PAD ON: +26 dBu (at 0 dBFS), Phantom power | +48 V Stereo (Line): Type: TS phone/RCA pin (unbalanced) jacks Maximum input level : +10 dBu |
| Outputs | Master Out: Type: XLR jacks (balanced) | Maximum output level :+14.5 dBu | Output impedance: 100 Ω Monitor Out A-F (With Balanced Output) Connected To Monitor Speakers: Type: TRS phone jacks (balanced) | Maximum output level: +14.5 dBu |Output impedance: 100 Ω Monitor Out A-F (With Unbalanced Output) Connected To Headphones: Type: Standard stereo phone jacks | Maximum output level: 42 mW + 42 mW at 60 Ω | Output impedance: 100 Ω Phones: Type: Standard stereo phone jacks | Maximum output level: 42 mW + 42 mW at 60 Ω | Output impedance: 100 Ω |
| Channel Strip | Comp Low Cut: 40–600 Hz, 12dB/OCT EQ: HIGH: 10 kHz, ± 15 dB, shelving | MID: 100 Hz – 8 kHz, ± 15 dB, peaking | LOW: 100 Hz, ± 15 dB, shelving | Level Meters | Level Segments: 12 |
| Send Effects | Effects | 20 Types: EFX 1 - Hall 1 (Reverb) ,Hall 2 (Reverb), Room 1 (Reverb),Plate (Reverb),Church (Reverb), DrumAmb (Reverb), GateRev (Reverb) ,Vocal 1 (Delay + Hall Reverb), Vocal 2 (Delay + Mono Reverb), Vocal 3 (Delay + Plate Reverb) EFX 2 - Hall 3 (Reverb), Room 2 (Reverb) , Spring (Reverb),Delay (Delay),Analog (Delay), P-P Dly (Delay), Vocal 4 (Delay + Room Reverb), Chorus 1 (Stereo Chorus),Chorus 2 (Mono Chorus),Cho+Dly (Chorus + Delay) |
| Recorder | Maximum Simultaneous Recording Tracks: 22 at 44.1/48/96 kHz Maximum Simultaneous Playback Tracks: 20 Recording Format & Sample Rates: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo Recording Media: 4 GB – 32 GB SDHC cards (Class 10 or higher) | 64 GB – 512 GB SDXC cards (Class 10 or higher) |
| Audio Interface | 44.1/48 KHZ: Recording: 22 channels | Playback: 4 channels Bit Depth: 24-bit Interface: USB 2.0 |
| System Requirements | Windows: OS：Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit) | CPU: Intel® Core i3 or faster, USB: USB 3.0/USB 2.0, Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD. Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards. Mac: OS： Mac® OS X 10.11 / 10.12 / 10.13 / 10.14 | CPU: Intel® Core i3 or faster, USB: USB 3.0/USB 2.0, Operation is not guaranteed when used with USB hubs or expansion cards. iPhone/iPad: OS： iOS 9 / 10 / 11 Apple Lightning-to-USB Camera Adapter required. | Card Reader | Class: USB 2.0 High Speed |
| USB Host | Class: USB 2.0 High Speed Sampling Frequency: 44.1/48/96 kHz Frequency Characteristics: 44.1 kHz: −1.0 dB, 20 Hz – 20 kHz 96 kHz: −3.0 dB, 20 Hz – 40 kHz |
| Additional Specs | Equivalent Input Noise: Actual measurements: −128dB EIN (IHF-A) at +60dB/150Ω input Display: LCD with backlight (128×64 resolution) Power: AD-19 AC adapter (DC12V 2A) Power Consumption: 24 W maximum External Dimensions: 438 mm (W) × 158.2 mm (D) × 151.7 mm (H) Weight (Main Unit Only): 2.49 kg |
