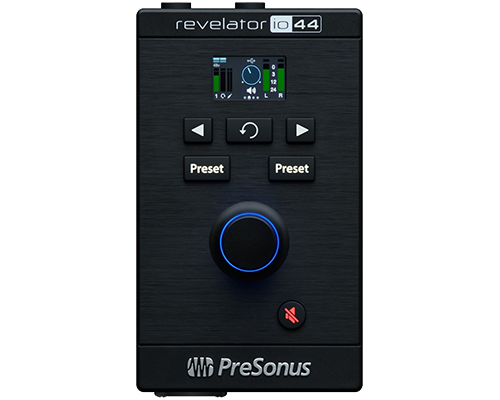

PreSonus Revelator io44 Portable Audio Interface
PreSonus Revelator io44 Ultracompact 4x2 USB Type-C Audio Interface - Perfect For DJ Set or Vocalist Livestreams
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Portable USB-C Audio Interface
PreSonus - Revelator io44
The ultra-compact recording and broadcast studioPacked with integrated DSP, loopback channels and an incredibly flexible I/O in a hugely portable and compact form, PreSonus’ Revelator io44 us a USB Type-C audio interface which effortlessly blends studio-grade quality, sonic performance and a welcome ease-of-use, enabling podcasters, live streamers, content creators and musicians can achieve pro sounds in no time at all! Alongside this, Revelator io44 ships with a free powerful software package which includes StudioOne Artist, a host of virtual instruements, plugins loops, samples, and much more.
On the hardware side, the single XMAX-L preamp and 24-bit / 96 kHz converters deliver clarity and natural tonality for your microphone or electric guitar, while the separate mini-jack input accommodates a line-level source such as a DJ mixer. Whether you use the factory presets or create your own, the built-in Fat Channel processing offers pro-level impact without ever taxing your computer. Use the two loopback channels and integrated mixer to pipe in backing tracks or a call-in guest, and feed independent mixes to the main and headphone outputs.
at a glance
• USB audio interface
• Compact model for mobile applications or small workstation
• Incl. integrated StudioLive audio processing with reverb, compressor & voice effects
• Incl. mixer for simultaneous mixing of audio signals from three different applications
• Connector for XLR microphones/instruments (combo jack)
• Stereo line input for eg. DJ consoles
• Headset input
Create A High-End Recording Studio Right At Home!
The Pocket-Sized Music Studio!Create a high-end recording studio right at home — or anywhere else — with Revelator io44. Whether you want to connect a professional XLR microphone, a guitar, a DJ mixer, or your gaming headset, Revelator io44 has all the inputs and outputs you need to record… even a built-in mixer that lets you blend audio from multiple applications. Processing is available on every analog input, so you’ll sound smooth and polished in your performances and recordings.
Guitarists, singers, DJs, and everyone else: you’ll sound great, regardless of if you’re tracking a record or performing live online.
Professional Microphones Deserve Professional Amplification!
25 years of studio-grade design experience25 years of studio-grade design experience is inside Revelator io44. Your XLR microphones will sound their best thanks to the PreSonus XMAX-L mic preamp with plenty of gain for your professional microphone to capture your voice smoothly, naturally, and distortion-free — and the onboard processing will make your voice stand out.
Whether you're recording a vocal or chatting with your followers during a livestream, you’ll be heard loud and clear.
Awesome Features!

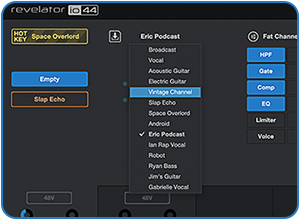

Powerful onboard processing Revelator io44’s onboard processing lets you polish your recordings and streams with one-click ease, thanks to masterfully crafted presets that give you a professional sound with no expertise required. You’ll also find tools to emulate concert hall reverb, AM radio, or otherworldly invaders to completely transform your sound — and of course, you can create and store your own custom presets for later use. And best of all, this processing happens on the Revelator io44 itself so your customized sound is available whether you connect Revelator io44 to your computer, your tablet, or your phone and won’t use up valuable computer resources when recording or streaming.
Grab audio from anywhereRevelator io44 features an easy-to-use mixer that lets you blend audio from up to three different applications at once, so you can add backing tracks, Skype calls, and even gameplay quickly and easily — without taxing your computer. An automatic output limiter prevents your stream from distorting. Whether you’re on macOS or Windows, you can create custom mixes of your inputs and your applications and monitor it all at near-zero latency so you can stream and record simultaneously!
Free Software!

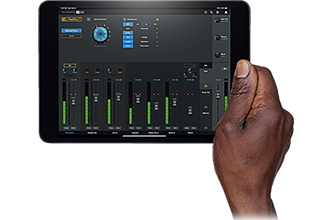

Remote
control
Wireless remote control via UC Surface for iPadOS®, Windows®, and Android™ devices means you get touchscreen control over all of your Revelator io44’s features, processing, and mixer features at your fingertips, without having to click away from your stream. Just connect your favorite tablet to the same network as your computer and you’re good to go!

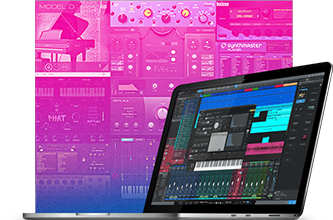

Complete music production
software includedThe Revelator io44 includes both Studio One Artist production and recording software and the Studio Magic software bundle. Studio One makes it easy to polish your recordings with its lightning-fast drag-and-drop workflow and fully-featured production environment. Studio Magic expands your palette with instruments, plug-ins, and more so you’re ready to hit record right from the start.
The Tech Spec
| Features | Specification | Form Factor | Mobile |
|---|---|
| Channels of I/O | 4 Inputs / 2 Outputs |
| Max Sample Rate/Resolution | 96 kHz / 24-Bit |
| Number of Mic Preamps | 1 |
| Input Level Adjustment | 1 x Knob |
| Gain/Trim Range | Mic Inputs:
60 dB Hi-Z Inputs: 50 dB Line Inputs: 40 dB |
| High-Pass Filter | 24 to 1000 Hz, 12 dB/Octave (via Software) |
| Solo/Mute | Mute per Master |
| Analogue Audio I/O | 1 x Combo XLR-1/4" TS Balanced/Unbalanced Mic/Hi-Z Input 1 x 1/8" / 3.5 mm TRS Unbalanced Line Input 1 x 1/8" / 3.5 mm TRRS Unbalanced Headset In/Out 2 x 1/4" TRS Balanced Monitor Output |
| Phantom Power | 48 V, Selectable On/Off |
| Host Connection / USB | 1 x USB Type-C (USB 2.0) |
| Frequency Response | Mic, Line, Hi-Z Inputs:
20 Hz to 20 kHz +0.1/-0.3 dB (Unity Gain) Monitor Outputs: 20 Hz to 20 kHz +0.1/-0.5 dB (Unity Gain) Headphone Outputs: 20 Hz to 20 kHz +0.1/-0.3 dB (Unity Gain) |
| Max Input Level | Mic/Hi-Z Inputs:
+10 dBu (Min Gain) Line Inputs: +10 dBu (Balanced, Unity Gain, 1 kHz) |
| Max Output Level | Monitor Outputs: +10 dBu |
| Headphone Output Power | 30 mW per Channel into 56 Ohms |
| Sample Rates | 44.1 / 48 / 88.2 / 96 kH |
| OS Compatibility | macOS 10.13 or Later Windows 10 or Later Chrome OS iPadOS iOS Android |
| Included Software | Studio One Artist |
| Included Plug-Ins | Delay:
Native Instruments REPLIKA Dynamics: Brainworx bx_opto Equalization: Mäag Audio EQ2 Guitar & Bass: Brainworx bx_rockrack Harmonic & Tape: Klanghelm SDRR2tube Reverb & Room: Lexicon MPX-i Reverb Special Processing: iZotope Neutron Elements Output Movement SPL Attacker Plus Virtual Instruments: Arturia Analog Lab Intro Cherry Audio Surrealistic MG-1 Plus Cherry Audio Voltage Nucleus KV331 Audio Synthmaster Player UJAM Virtual Bassist ROWDY UVI Model D |
